How to Set Up Your Org Chart in Microsoft Entra ID (Azure AD)

In this guide we'll show you how to update the key job information for each employee in Microsoft Entra ID in order for you to see your company org chart in Microsoft.

How to Set Up Your Org Chart in Microsoft Entra ID (Azure AD)

When wanting to utilize your Microsoft user profile data to create an organizational chart, Microsoft Entra ID, formerly known as Azure Active Directory, is the place to do it.

While you don't explicitly construct the org chart within Entra ID/Azure AD, by filling out key employee information for each employee, the system automatically generates the org chart for you. Allowing you to visualize your organization in various Microsoft applications like Microsoft Teams and Outlook.

In the following steps, we will guide you to the appropriate locations for updating essential job information for each employee, thereby enabling a visible representation of your company's organizational structure using your Microsoft user profile information.

But before you can set up the organization chart in Entra ID/Azure AD you'll need;

  • Admin rights/admin account to access the Entra ID/Azure AD
  • To have all users that will be included in the chart already added to the Entra ID/Azure AD
  • The job information for all employees like their job title, deparment and manager

How to access the Azure AD portal

To start, sign in to the Azure portal ( using your admin account credentials.

Once logged in, navigate to the "Azure Active Directory" service by searching for it in the search bar or finding it in the left-hand menu.

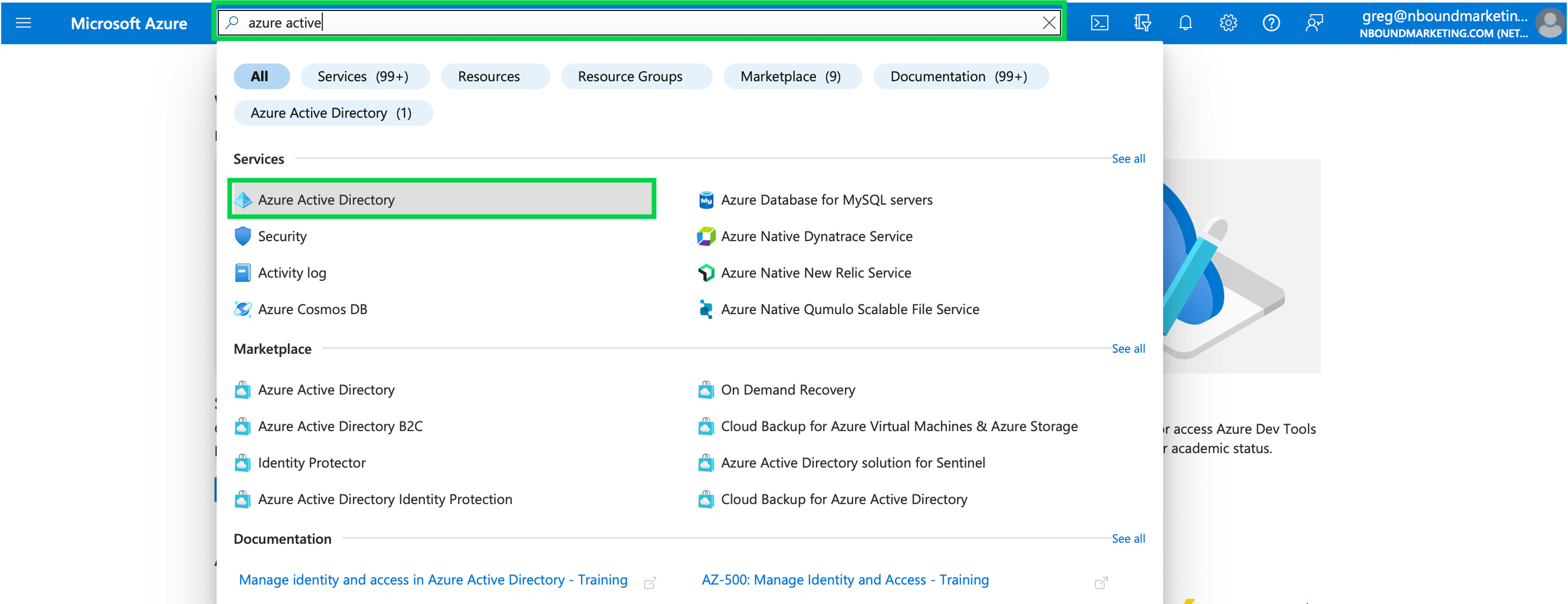

Sign in to Azure AD

Or by clicking the "View" button on the "Manage Azure Active Directory" block on the home page.

Manage Azure AD

Create and Manage Users in Entra ID/Azure AD

Before you can build your organizational chart, you'll need to have your employees set up as users in Entra ID/Azure AD.

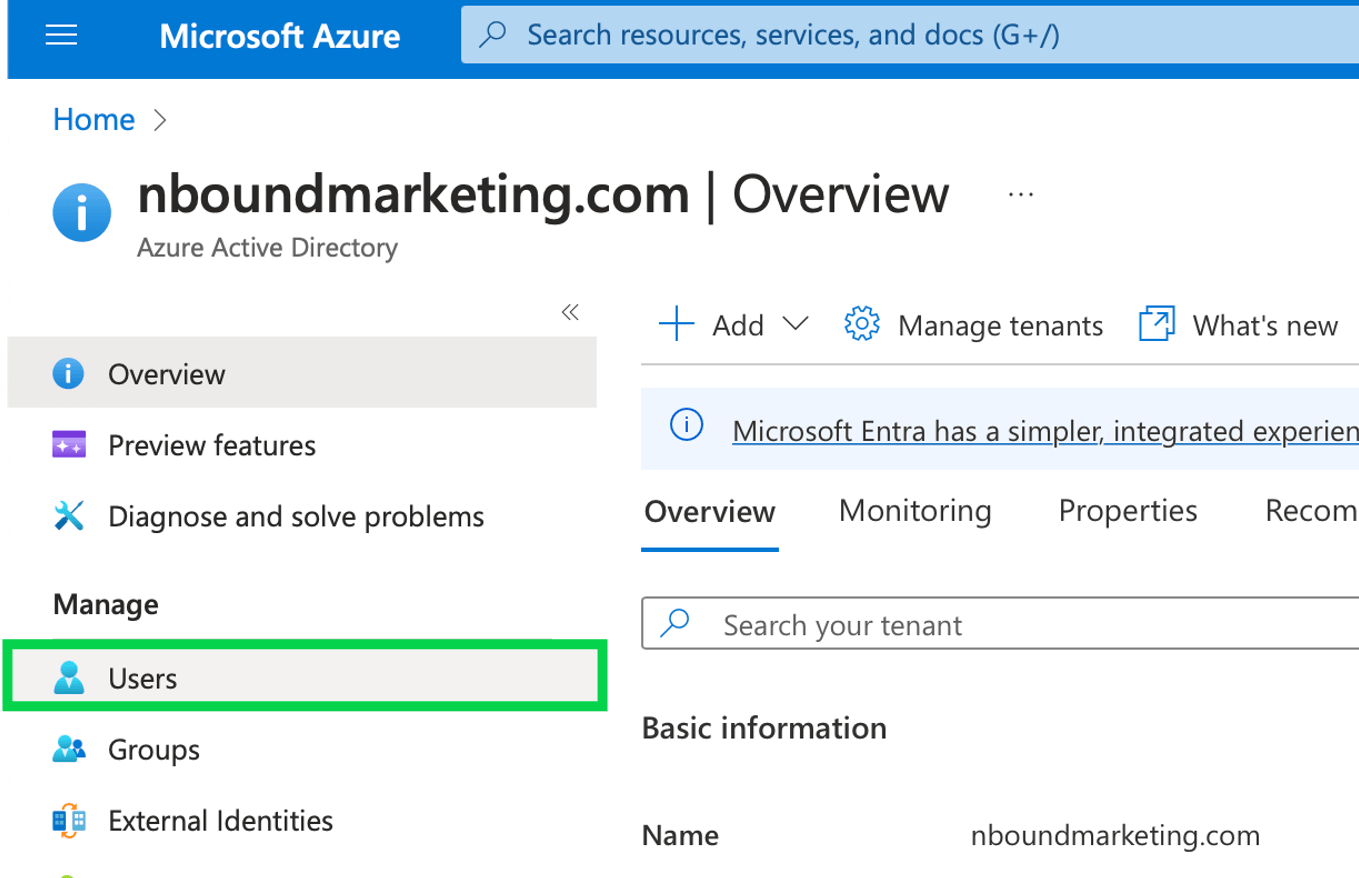

1. In the Entra ID/Azure AD portal, click on "Users" in the left-hand menu.

Users in Azure AD

2. Click "New user" at the top of the page to add a new employee.

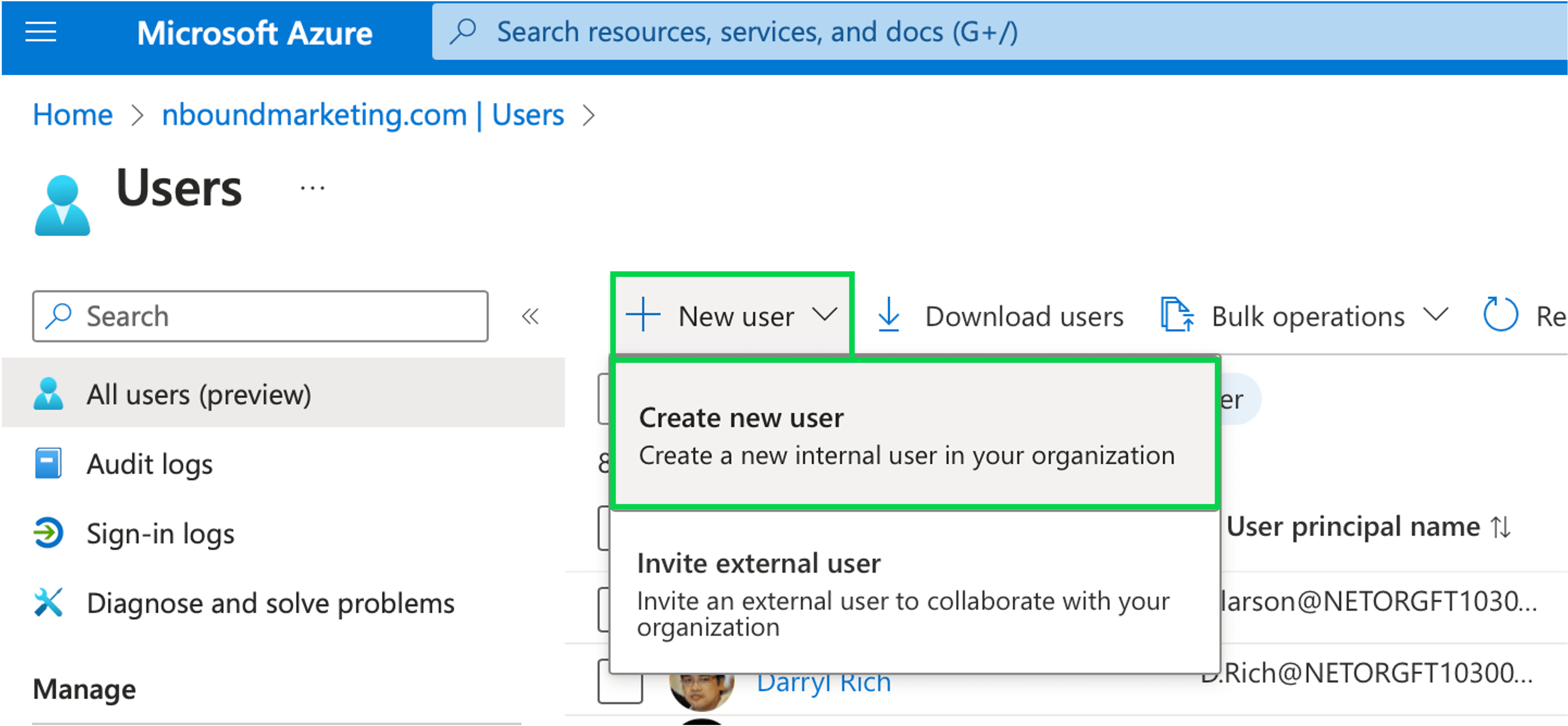

Create new user in Azure AD

3. Fill in the required information for each employee, such as name, username, and password.

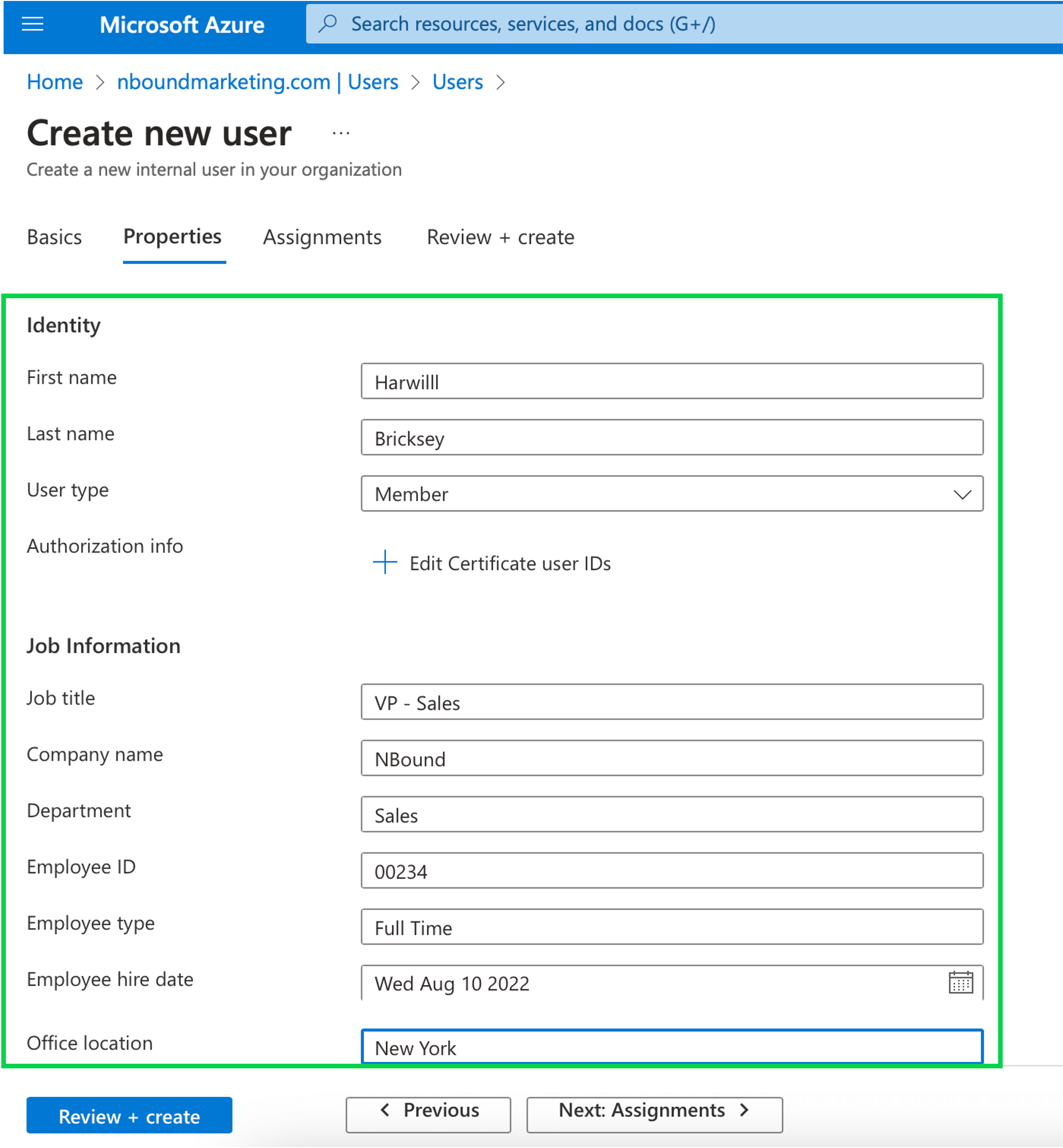

User identification in Entra ID

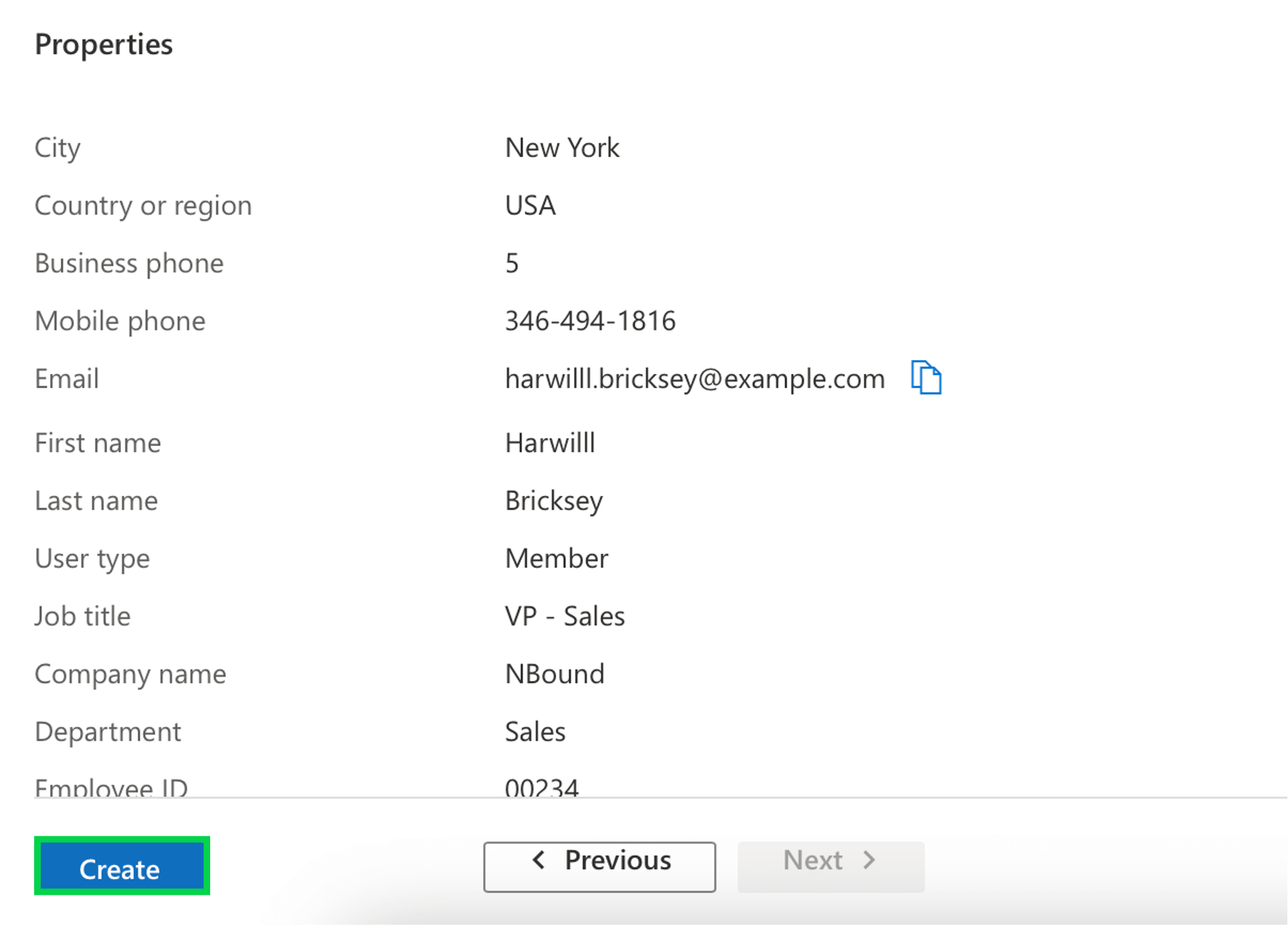

4. Click "Create" to add the user to your directory.

Save new user in Entra ID

5. Repeat these steps for all employees in your organization.

How to set up your reporting structure

Define the manager-employee relationships in your organization.

1. In the Entra ID/Azure AD portal, click on "Users" in the left-hand menu.

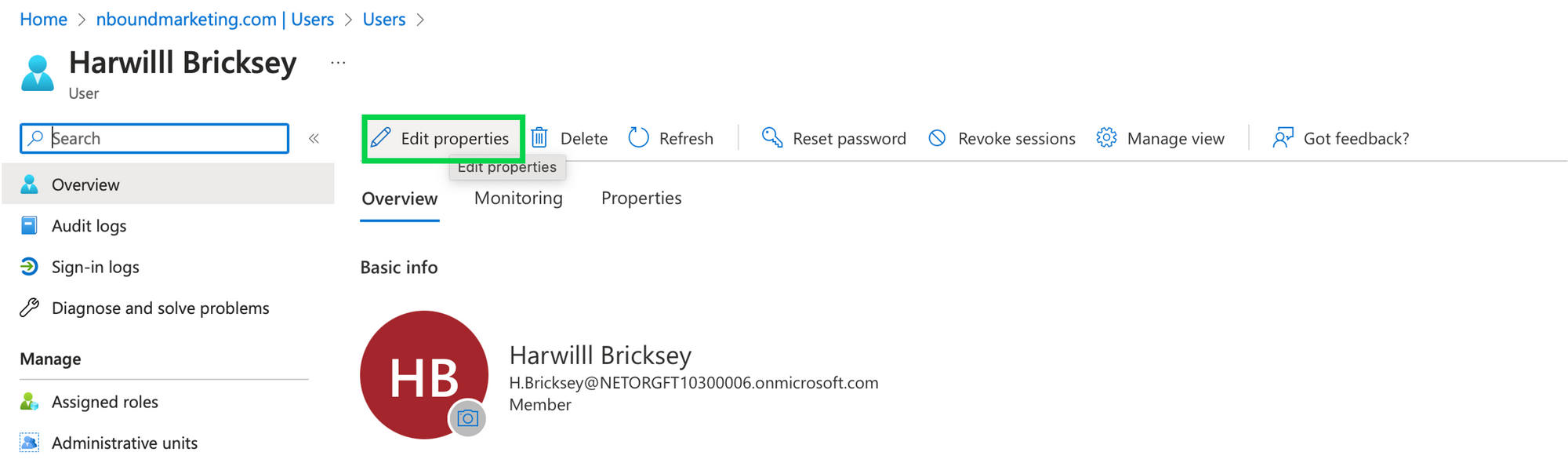

2. Click on an employee's name to open their profile and then click "Edit properties".

Edit properties in Azure AD

3. Under the "Job info" tab, click "Edit" next to "Manager."

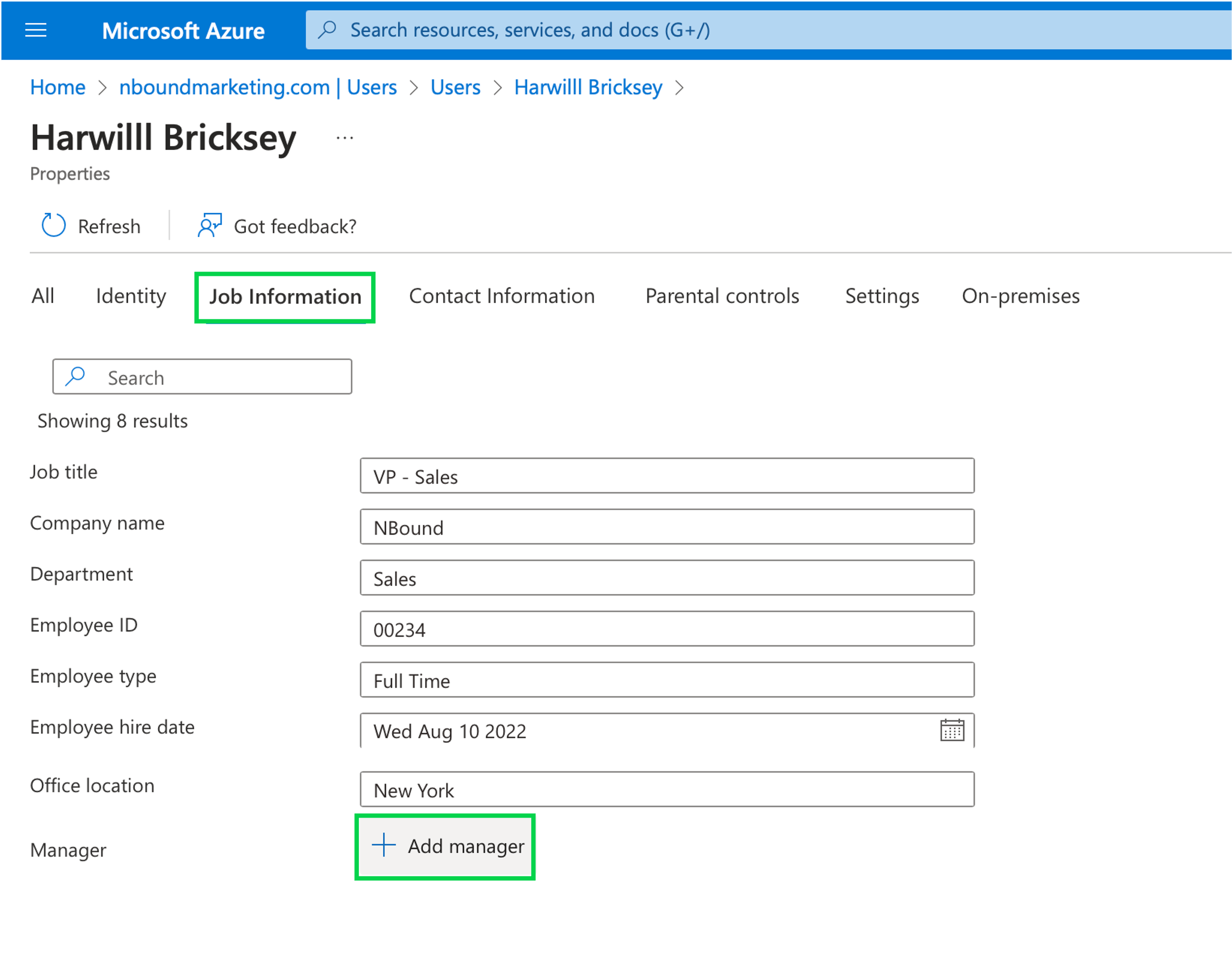

Azure AD job information

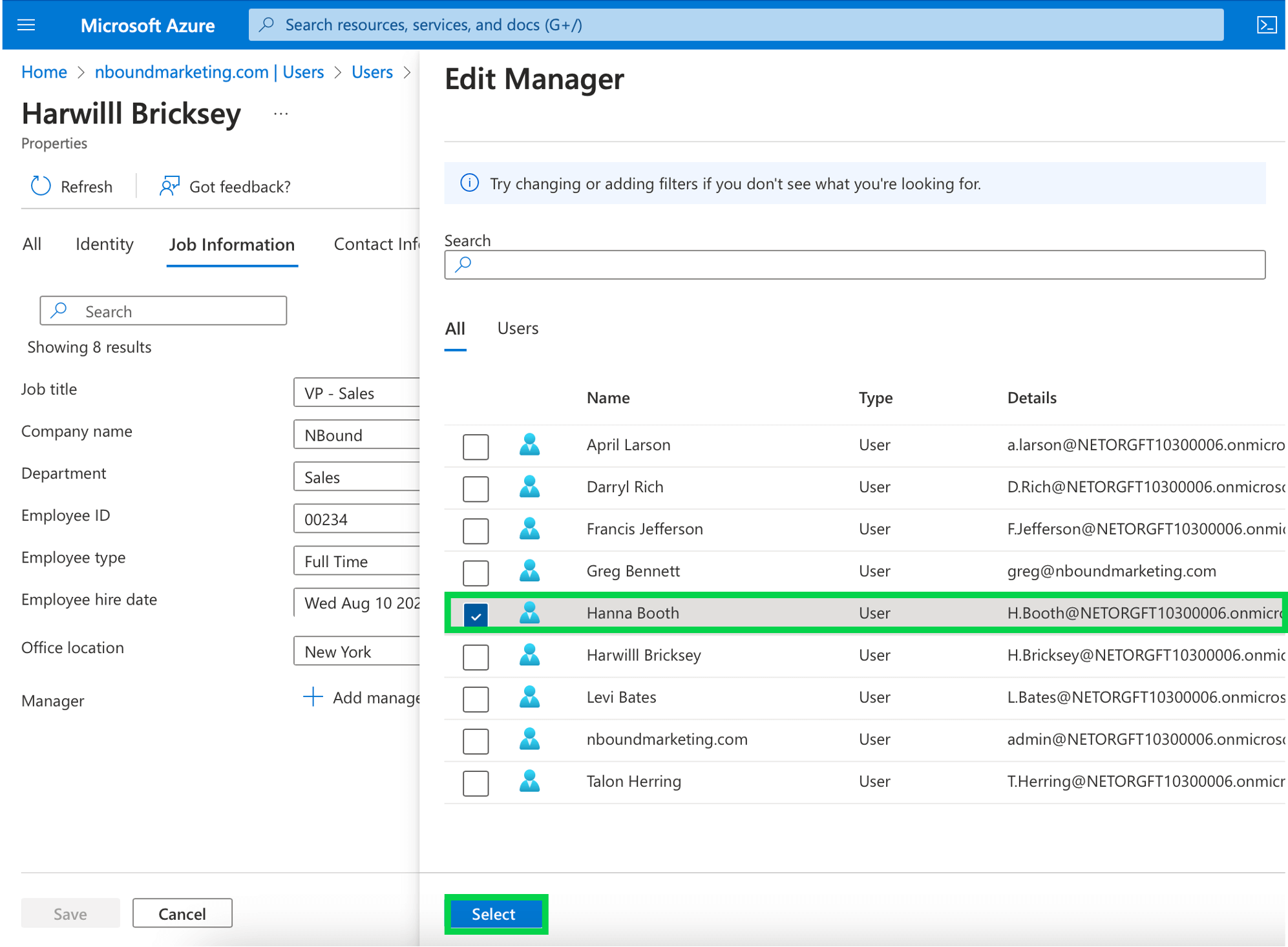

4. Search for and select the employee's manager.

Edit manager field in Azure AD

5. Click "Save" to update the reporting relationship.

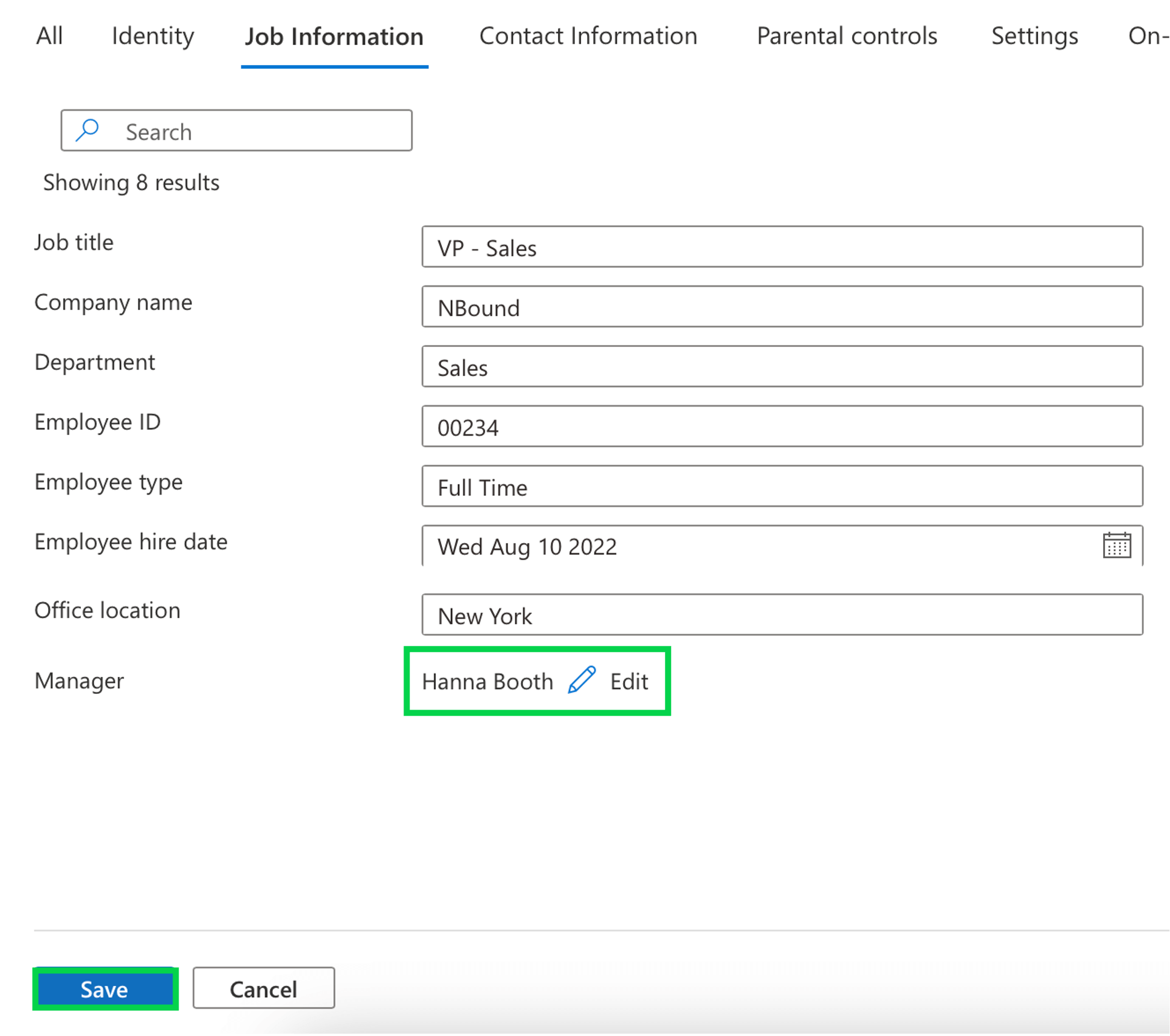

Save reporting relationship in Azure AD

6. Repeat these steps for all employees in your organization.

You've now successfully set up your organizational chart in Entra ID/Azure AD!

By following these steps, you'll have a clear view of your organization's structure, making it easier to manage resources and collaborate effectively.

View your Org Chart in Microsoft 365 & Third-Party Tools

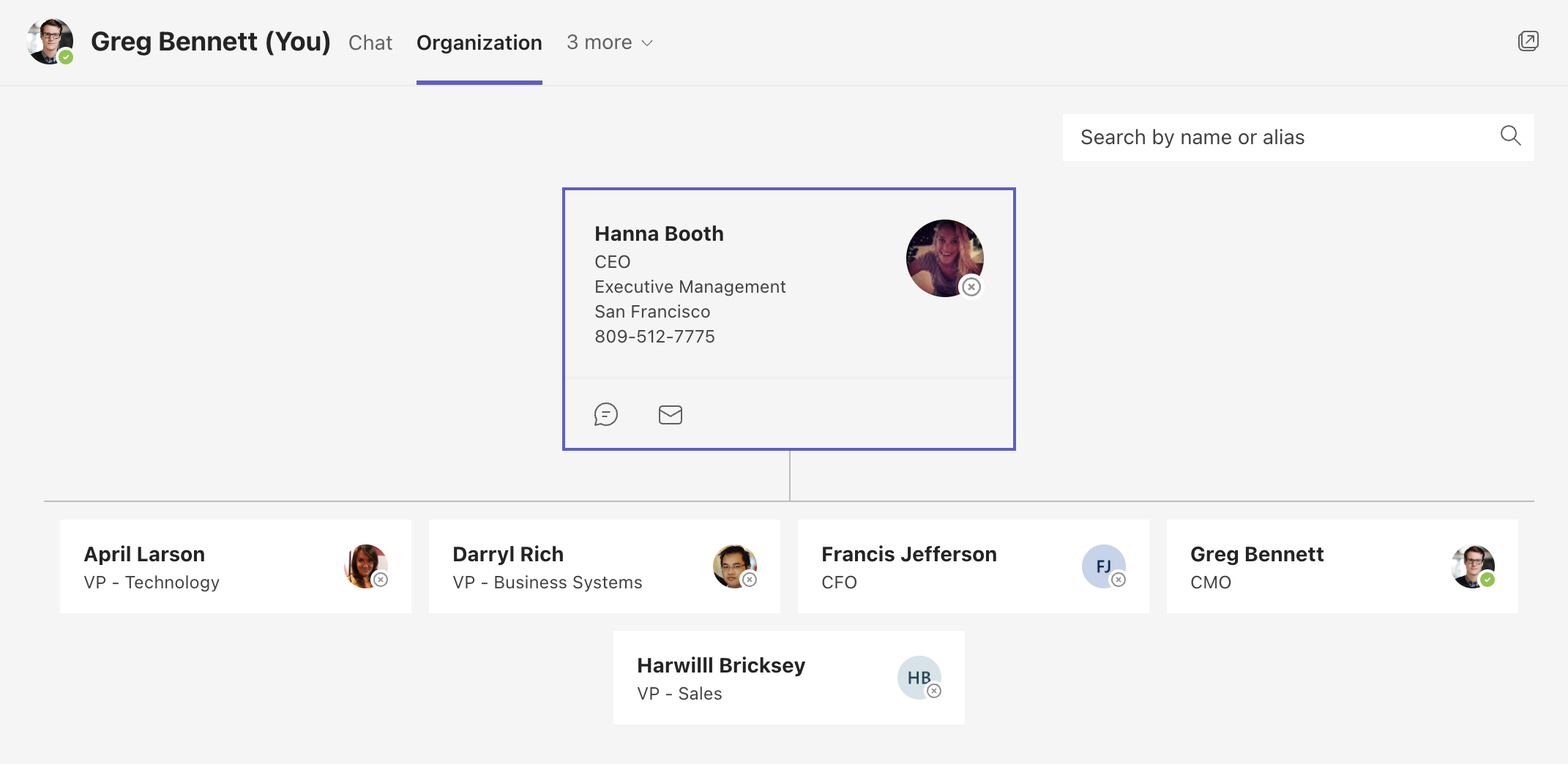

View your org chart in Microsoft Teams

Microsoft Teams is a microsoft tool where you cab easily view and collaborate on your Entra ID/Azure AD org chart.

  • Access your org chart by clicking on your name in the chat panel and then selecting "Organization" in the top tab.
  • Explore the hierarchical structure of your organization and discover reporting relationships.
  • Initiate chats, calls, or meetings with team members directly from the org chart.
  • Share the org chart with colleagues for seamless collaboration and communication.
Org chart in Microsoft Teams

View your org chart in Microsoft Outlook

Microsoft Outlook is yet another place where you can view your Entra ID/Azure AD org chart.

  • View an individual's org chart by opening their contact card within Outlook.
  • Explore the organizational hierarchy and discover reporting relationships among team members.
  • Send emails, schedule meetings, or initiate chats directly from the org chart.

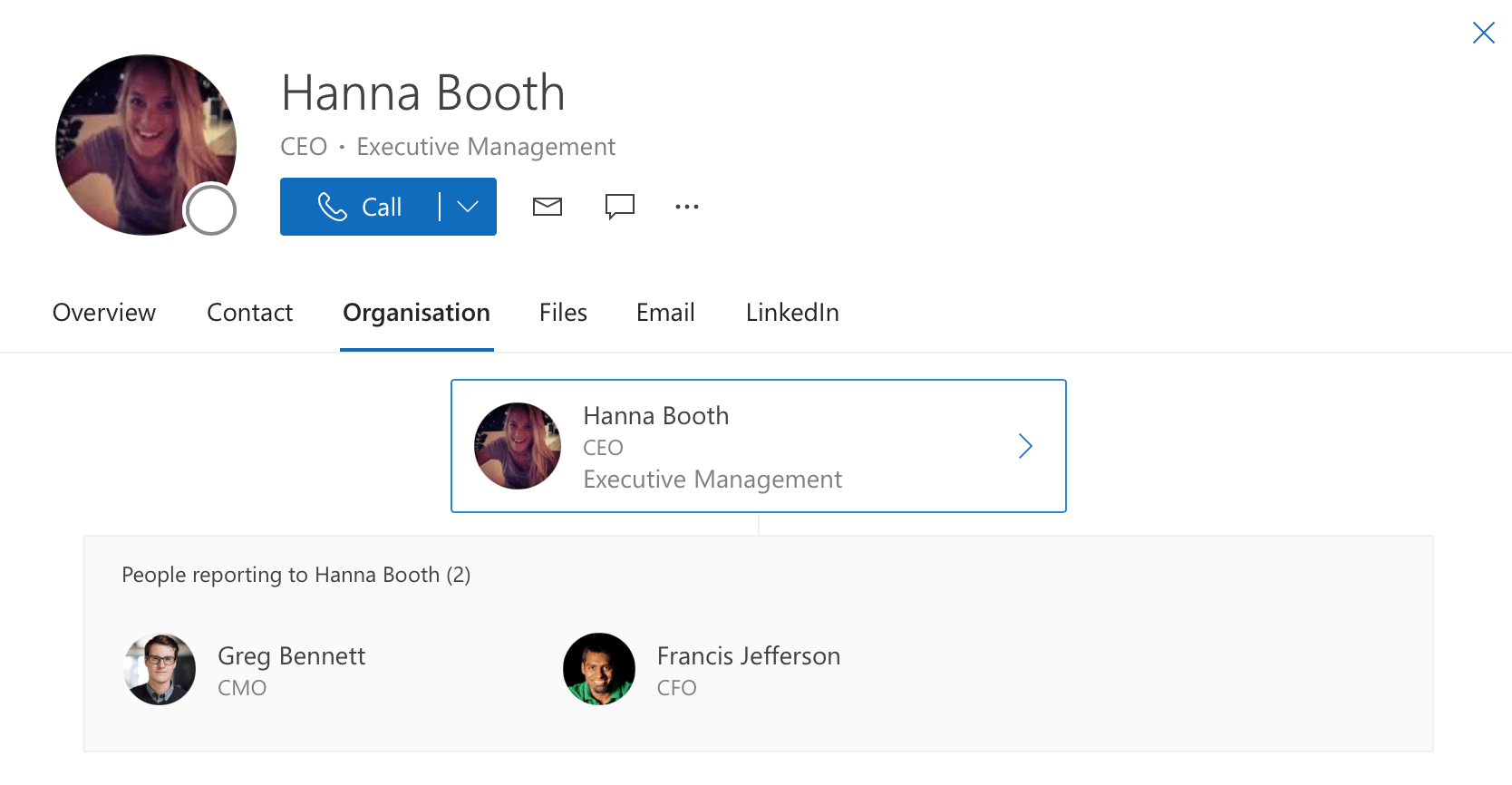

Org chart in Outlook

View your org chart in OneDirectory

OneDirectory's org chart syncs automatically with Entra ID/Azure AD so it's always up to date from your Microsoft 365 profiles.

  • Visualize your company hierarchy and flow through your organizational structure in minutes.
  • Scroll, zoom and pan your org chart by clicking & dragging or using the scroll wheel or trackpad.
  • Click any card in the org chart to view a full profile instantly.
  • Easily view profile pictures, job titles, office locations and departments for every employee on their org chart profile card.
  • Start the org chart from any starting point.
  • Easily download your visual org chart via SVG or PNG.

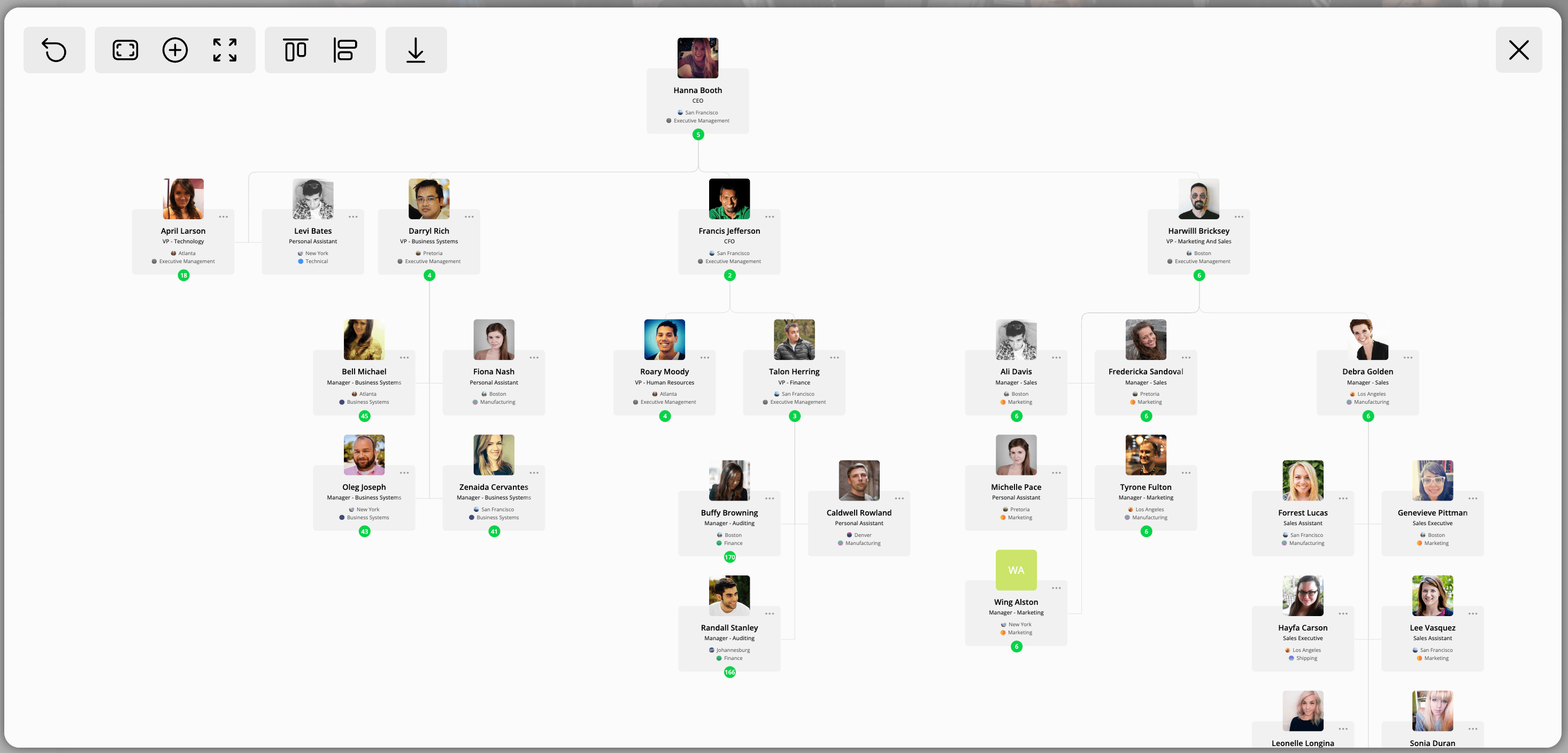

OneDirectory Org Chart

Export your Entra ID/Azure AD user profile information

You can easily download your user data by following these steps:

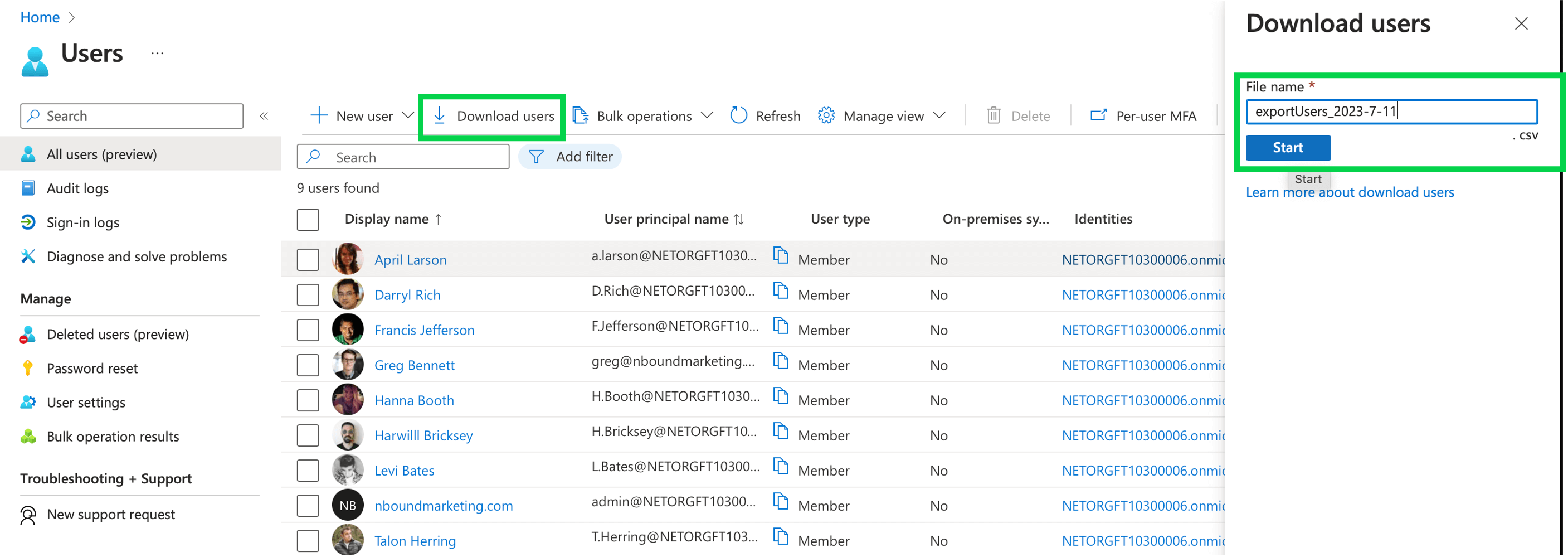

1. Export your Entra ID/Azure AD data by clicking on "Users" then "Download users" then click "Start."

Download users in Azure AD

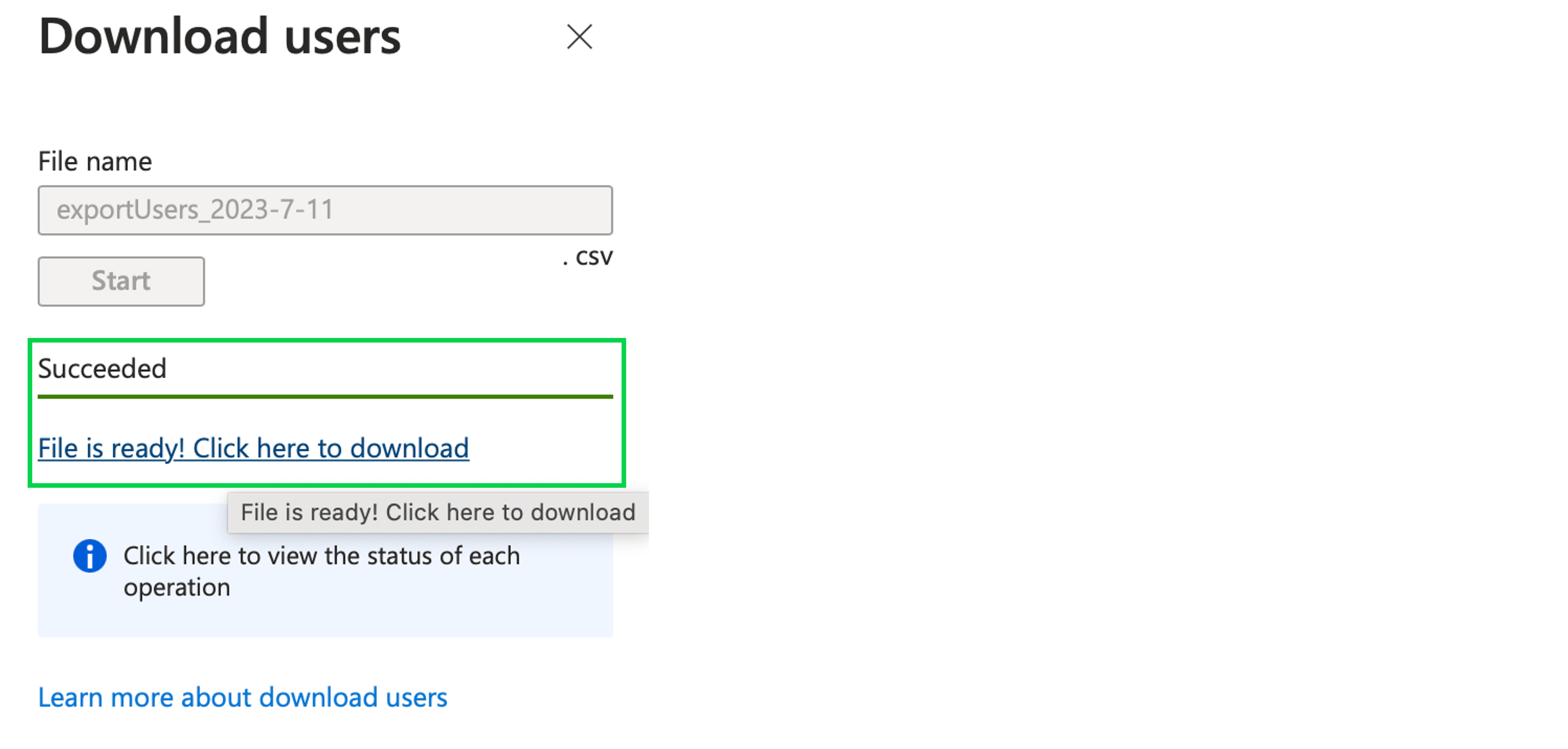

2. Download the CSV file to your local computer.

Azure AD users csv

Wrap Up

By establishing your organizational structure in Entra ID/Azure AD, you empower your employees with the ability to visualize the company's hierarchy and their individual place within it. This is made easy and convenient as the information can be accessed through everyday tools such as Teams, Outlook, and OneDirectory.

In essence, by leveraging Entra ID/Azure AD for your org chart, you're integrating this valuable information into the very fabric of your daily operations, making it readily accessible and beneficial for all employees. This ultimately fosters a sense of belonging among team members, as they can clearly see where they fit into the larger organizational picture.
